Various Pipeline Maps

Various Pipeline Maps

These maps were all either composited by Bill Huston from various sources,
or are republished unchanged. Blame only he (me) for any errors or issues with aesthetics.

http://williamahuston.blogspot.com/p/various-pipeline-maps.html


national grid

Bluestone

Buckeye / Teppco

Constitution (proposed)

Bluestone Gathering

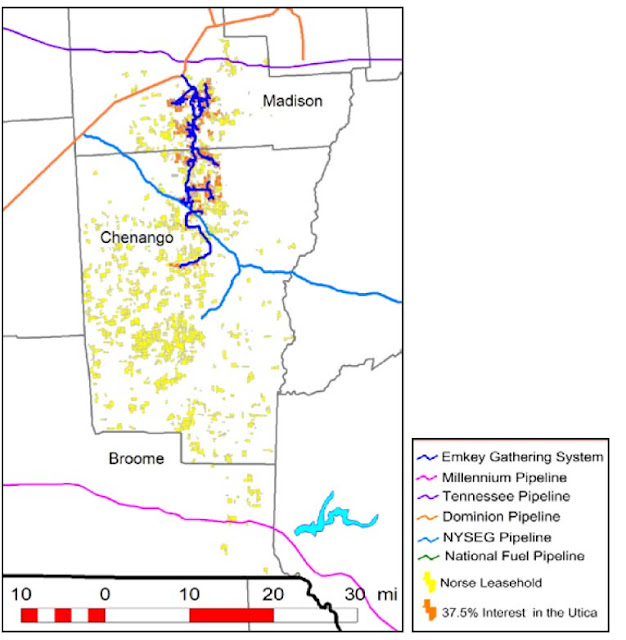

Emkey (existing)

Emkey (existing) North

EmkeySouth (proposed)

Marc-1

NE Nat Gas Pipelines. See: http://www.eia.gov/todayinenergy/detail.cfm?id=4750

Tennessee Gas Pipeline Company/ Kinder-Morgan NSD project
http://www.kindermorgan.com/business/gas_pipelines/projects/NSDProject/

Inergy, interconnects to Transco 500 Line, Marc-1, Tennessee Line 300, NS Project, Stagecoach Storage, Dominion (schematic)

Natural Gas Hubs. See:
http://www.eia.gov/pub/oil_gas/natural_gas/analysis_publications/ngpipeline/MarketCenterHubsMap.html

NY Marcellus Permits. See:
http://info.drillinginfo.com/urb/marcellus/uncategorized/2012/03/still-duking-it-out-in-new-york/

TGP 300 expansion
http://www.pipelinersexpress.com/LGpxp/pro-projects-nonmember.html#anchor_201

Williams Transco system map.

Buckeye Pipeline system map.
http://varifrank.com/archives/2007/06/index.php


Constitution (proposed)

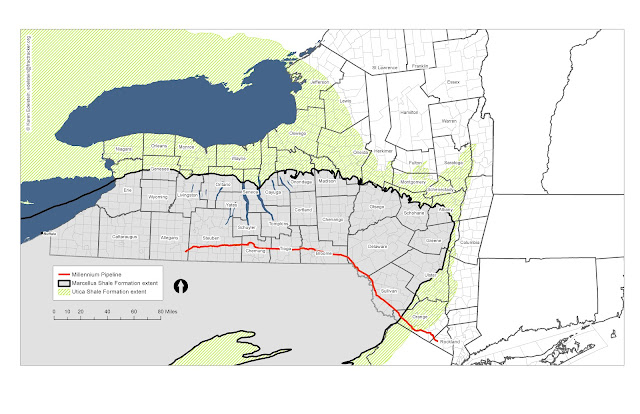

Millennium Pipeline

Laser NE gathering


Kinder Morgan expansion

Marc-1




PVR NE Marcellus gathering lines

PVR

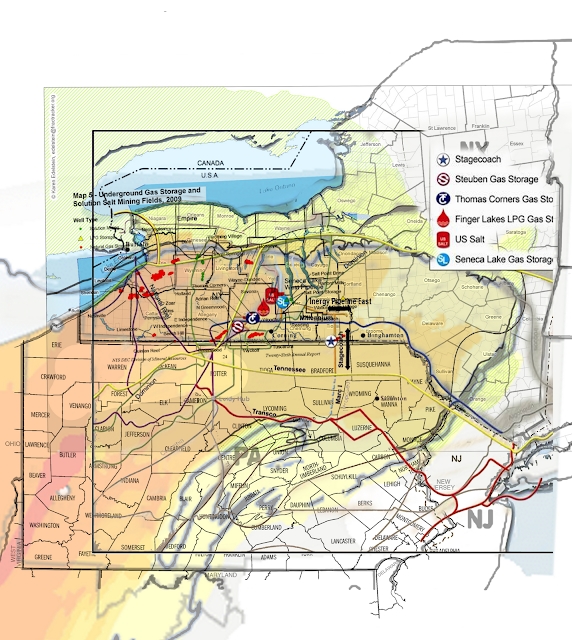

Map1: Tennessee (Green), Iroquois (Cyan), Transco (Purple), Dominion (brown), Constitution (Red-dotted/Proposed),
Marc-1, Emkey, Williams Central Station, Springville Compressor, Bluestone, Laser, NS line, Red=storage, Catskill Park (pink), NYC watershed (violet)


Map 2: Teppco, Buckeye (ethanol?)

Map 3: Inergy, Fingerlakes, storage.
Map 4: detail of map 1.

NY PA Regional Pipelines Mid Jan 2013
Final Constitution Route Added
Purple=Transco, Brown=Dominion
Turquoise=Iroquois, Green=Tennessee
Green blob=NYC watershed.
Yellow Star=Minisink Compressor
Blue Star=Williams Central Station,
Turquois star=Hancock Compressor (proposed)
Red=gas storage. NOTE: Emkey gathering in Chenango County
Note: Inergy N-S (Stagecoach line) south of Owego,
note Marc-1 line Sullivan/Bradord Co.
NOTE: PVR-Wyoming (gathering) and Williams-Springville (gathering)
Bluestone=red (gathering), just to the east of Constitution,
Laser=blue (gathering) just to the west of Constitution.



NY PA Regional Pipelines Mid Jan 2013 (detail)
Final Constitution Route Added
Purple=Transco, Brown=Dominion
Turquoise=Iroquois, Green=Tennessee
Green blob=NYC watershed.
Yellow Star=Minisink Compressor
Blue Star=Williams Central Station,
Turquois star=Hancock Compressor (proposed)
Red=gas storage. NOTE: Emkey gathering in Chenango County
Note: Inergy N-S (Stagecoach line) south of Owego,
note Marc-1 line Sullivan/Bradord Co.
NOTE: PVR-Wyoming (gathering) and Williams-Springville (gathering)
Bluestone=red (gathering), just to the east of Constitution,
Laser=blue (gathering) just to the west of Constitution.











 Summary of major facilities in the northeast, focusing on NY and PA:

Storage:
1: Stagecoach
near Owego and South into PA.
Also 2:Watkins Glen, Inergy/US Salt salt caverns.
Also, massive new 3: super-tank near Penobscot / Searsport ME.
Oh and 4: Assumption Parish/Corne Bayou Big Stinky Slurpee Sinkhole.

Pipelines:
1: Millenium, 2:Transco, 3:Tennessee, 4: Iroquois,
5: Marc-1, 6: Dominion, 7: Constitution, 8:Emke, 9:Leatherstocking,
10:Laser NE, 11:Inergy N-S, 12:Bluestone, 13:Wyoming Line (a/k/a Springville line),
14:Buckeye (ethanol?) 15:Teppco (ethanol?). 16: Spectra

Compressors: 1:Williams Central Station, 2:Hancock, 3:Minisink,
4:Springville/Lathrop
(ker-BLEWIE!) , 5:Windsor (ker-BAM!), 6: Janet Hock Road
7:Davidson Township, Sullivan County (Marc-1), 8:Dallas PA/Luzernne Co.


Also many new permits for LNG export terminals.
http://fossil.energy.gov/programs/gasregulation/
